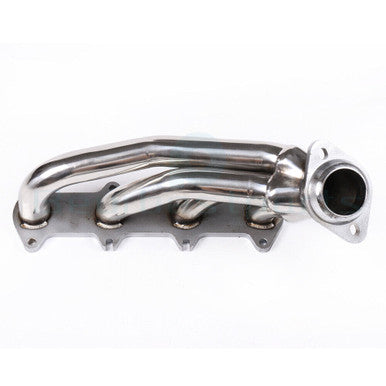

Stainless Steel Shorty Headers For Ford F150 (2004-2010) with 5.4L V8 Engine

Fix those ticking factory manifolds once and for all while giving your Triton V8 the growl it deserves.

Performance Stainless Steel Shorty Headers for 2004-2010 Ford F-150 (5.4L Triton)

If you own a 3-valve 5.4L Triton, you’ve likely dealt with the dreaded manifold tick. The stock cast-iron manifolds are notorious for warping and snapping studs, causing annoying exhaust leaks and lost low-end torque. These Shorty Headers are the "real world" fix, designed to bolt directly to your factory Y-pipe while providing a permanent solution to the warping issues common on the 2004-2010 chassis.

These headers are specifically engineered for the 5.4L engine family. While the 4.6L and 5.4L share some modular DNA, the 5.4L features a taller deck height, meaning port alignment and clearance near the steering shaft are critical. These shorties are precision-bent to ensure they clear the frame rails on both the Heritage and the standard Eleventh-Gen F-150 without needing a custom tune or mid-pipe fabrication.

Technical Specifications

Why You Need This Upgrade

• Eliminate Exhaust Leaks: The thick 7/16" head flanges resist warping far better than thin factory castings, ensuring a long-term seal and a quieter cab.
• Better Towing Torque: Mandrel-bent 1.75" primaries increase scavenging efficiency, helping your truck pull through the mid-range where the Triton lives.
• Direct Bolt-On Fit: Designed as a "Shorty" style, these headers connect to your existing exhaust system, making them 50-state legal in many jurisdictions and easier to install than long-tubes.
• Bulletproof Construction: Fully TIG-welded stainless steel ensures these won't rust through or crack under the extreme heat of heavy hauling.

Installation & Fitment Notes

Header installs on the 5.4L are notorious for broken manifold studs. We highly recommend soaking your factory bolts in penetrating oil for 24 hours prior to the job. This kit includes new gaskets and hardware, but always ensure the cylinder head surface is scraped clean for a leak-free seal. No ECU reflash is required as these retain the factory oxygen sensor locations.

Replace your warped factory manifolds with stainless steel performance and finally wake up your 5.4L Triton's potential.
